Which YESWELDER TIG Torch Kit Should You Actually Buy?

The YESWELDER TIG Torch with a 35-50mm² connector provides a complete 150-amp Lift-TIG solution designed for medium and heavy-duty multi-process welding machines. As a yeswelder wp-17v tig torch 150a setup, it features a 13-foot reach, an integrated manual gas valve on the torch body, and a standard 5/8″-18 gas fitting. This torch is built specifically for welders that feature larger quick-connect output terminals, delivering smooth arc starts when paired with Lift-TIG capable power sources. If you operate compatible equipment such as the YESWELDER MIG-165DS PRO, MIG-185DS PRO, MIG-205DS PRO, MIG-250PRO, or ARC-205DS PRO, this yeswelder tig torch 35-50mm2 connector torch plugs directly into the front panel without requiring aftermarket terminal adapters. It also serves as a reliable addition for operators exploring multi-process setups alongside their yes welder tig units.

Internally, the cable assembly uses 8mm² premium copper wire designed to disperse heat efficiently during prolonged high-amperage welding runs. This thermal management helps maintain steady electrical conductivity and consistent bead formation across extended duty cycles. The exterior cable and gas line are wrapped in a fireproof and insulated jacket engineered to resist sparks, weld spatter, UV exposure, oil, and abrasion. The tough outer layer remains flexible enough for smooth wrist manipulation while protecting the internal gas conduit from shop-floor hazards.

Straight out of the box, this package includes a starter assortment of standard consumables: one 10N50 #4 alumina ceramic cup (1/4-inch orifice), one 10N49 #5 cup (5/16-inch orifice), one 10N48 #6 cup (3/8-inch orifice), three collets (1/16-inch, 3/32-inch, and 1/8-inch), a 10N28 1/8-inch collet body, and a 57Y02 long back cap (the listing does not specify the remaining short cap designation). This torch suits operators with medium-to-large multi-process welders who need an out-of-the-box TIG solution. However, it gives way to the smaller 10-25mm² version if your welder utilizes smaller terminal DINSE plugs.

• Rated for 150 amps with an air-cooled WP-17V torch configuration
• Features a 35-50mm² quick plug connector and a 5/8″-18 gas fitting
• Constructed with 8mm² premium copper wiring inside a fireproof, UV-resistant jacket
• Includes three alumina ceramic cups, three collets, a collet body, and a long back cap

Best for
Securing TIG torches between weld passes

The YESWELDER Magnetic TIG Welding Torch Holder provides a dedicated, heavy-duty parking station for your torch during fit-up, tacking, and between welding passes. Leaving a hot TIG torch resting haphazardly on a metal workbench frequently results in cracked ceramic or glass cups, bent tungsten tips, or accidental arcing. This yeswelder magnetic tig welding torch holder prevents those shop floor accidents by offering a secure vertical rest that grips your welding table or the steel cabinet of your welding machine.

Constructed from solid steel, this 1.7-pound stand is engineered with a durable orange paint finish that resists typical shop wear and corrosion. The base is electroplated and polished to lower surface roughness, giving it a clean, bright finish that mounts smoothly against flat steel surfaces without catching burrs. The core of its holding power comes from a powerful ferrite magnet secured to the steel base with an SC 4.8 strength-grade screw and nut. This magnetic grip provides reliable holding stamina, ensuring the stand remains firmly in place even when holding a heavy 13-foot cable assembly.

The holder’s universal cradle geometry accommodates almost any standard TIG torch on the market, including WP-9, WP-17, WP-18, and WP-26 series handles. Beyond holding the torch neck safely upright, the stand allows operators to neatly loop and arrange the cable lead so it does not pull the torch off the table. This tool is an essential organizational add-on for any fabricator running a TIG setup. It gives way to full torch kits or consumable sets if your primary requirement is replacement welding hardware rather than workstation management.

• Weighs 1.7 pounds with a heavy-duty steel structure and durable orange finish
• Electroplated and polished magnetic base reduces surface roughness
• Equipped with a powerful ferrite magnet secured by an SC 4.8 screw and nut
• Universal cradle design fits most TIG torch styles and supports cable management

Best for
Multi-process operators running 0.035 MIG wire

The YESWELDER MIG Welding Gun Kit (model YW-100L-0.9) is a specialized 24-piece consumable replacement set designed for multi-process welders that run MIG alongside TIG operations. Many fabricators who buy YESWELDER multi-process machines switch frequently between TIG welding and wire-feed MIG welding. When working with 0.035-inch solid or flux-cored wire, having a fresh supply of contact tips, gas diffusers, and nozzles is essential to prevent wire jamming and maintain an arc with minimal spatter. This yeswelder mig welding gun kit 0.035 package delivers the exact parts needed to keep wire feeding cleanly.

This kit is engineered to fit Lincoln Magnum 100L (K530 series) and Tweco Mini/#1 welding torches. In addition, it provides direct compatibility with an extensive list of YESWELDER machines, including the FLUX-135PRO (older version), MIG-140DS PRO, YWM-160, MIG-165DS PRO, MIG-185DS PRO, MIG-205DS PRO, MIG-250PRO, and the MCT-520. Fabricators working across multiple welding processes, whether running a wire feeder or maintaining a dedicated miller tig welder workstation, understand that keeping clean wire feed consumables on hand is critical for project efficiency.

The kit contains 20 contact tips sized for 0.035-inch wire, two gas diffusers, and two nozzles, all manufactured from heat-resistant copper. The nozzles feature a conical surface design that focuses shielding gas airflow directly over the weld pool, increasing gas velocity and shielding accuracy while minimizing spatter adhesion. The ultra-smooth inner surface reduces friction resistance for the shielding gas, improving overall gas fluidity. This kit is tailored for operators running 0.035 MIG wire on compatible multi-process guns, but it gives way to the TIG-specific stubby kits if your focus is strictly on tungsten arc gas lens components.

• Comprehensive 24-piece set includes 20 contact tips (.035″), 2 nozzles, and 2 gas diffusers
• Direct fit for Lincoln Magnum 100L, Tweco Mini/#1, and YESWELDER multi-process welders
• Precision copper construction resists heat and minimizes spatter buildup
• Conical nozzle design focuses shielding airflow to improve weld pool coverage

Best for
TIG welders wanting clear puddle visibility

The YESWELDER 49Pcs TIG Welding Torch Stubby gas lens kit provides an extensive consumable upgrade for welders operating standard WP-17, WP-18, and WP-26 torches. Standard alumina ceramic cups restrict the welder’s field of vision, forcing you to lean close or adjust your torch angle unnaturally to monitor the molten puddle. This yeswelder 49pcs stubby gas lens kit introduces clear #10 glass cups that give the welder an unobstructed view of the tungsten electrode, the electrical arc, and the puddle flow across the joint.

Built from alloy steel, carbon steel, and heat-resistant glass, the components in this 49-piece kit are engineered for high plasticity, toughness, and crack resistance. The materials exhibit strong low-temperature impact toughness, ensuring that the collets, collet bodies, and gas lenses hold up under repeated thermal cycling. As part of the broader category of yeswelder tig torch accessories for wp-17 wp-18 wp-26, these gas lenses offer a major upgrade over standard collet bodies by using internal fine-mesh screens to straighten the shielding gas flow. The manufacturer notes that while these parts fit standard WP-17, WP-18, and WP-26 torches, the included insulating rings may not match CK Torch bodies.

This kit is especially well suited for pipeline TIG welding, arc welding repairs, and sanitary tubing fabrication where joints in carbon steel and low-alloy steel require flawless gas coverage. By converting a standard full-size torch into a stubby configuration, the overall head profile is shortened significantly, allowing access into tight corners and confined roll cages. It is the perfect mid-size consumable investment for fabricators who already own a torch and want the visual benefits of a yeswelder tig gas lens cup kit. However, if your shop runs high-volume production with multiple operators, the larger 123-piece kit offers greater replacement depth.

• Contains 49 pieces of stubby gas lens hardware and clear #10 glass cups
• Compatible with industry-standard WP-17, WP-18, and WP-26 TIG torches
• Alloy steel and glass construction provides superior crack resistance and thermal stability
• Gas lens screens create laminar shielding gas flow for cleaner welds on carbon and low-alloy steel

Best for
High-volume fabrication shops needing glass cups

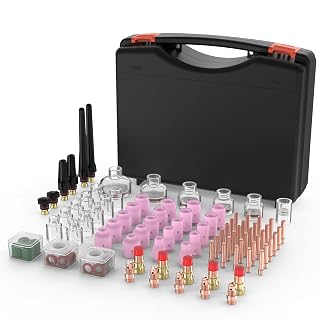

The YESWELDER 123 Pcs TIG Welding Torch stubby gas lens kit (part number BPG35-123-PRO) represents the ultimate consumable package for high-volume fabricators and vocational shops. Like the 49-piece version, this extensive yeswelder 123 pcs tig torch glass cup kit is designed for WP-17, WP-18, and WP-26 torches, converting large, cumbersome torch heads into compact, maneuverable stubby setups. Having a large supply of interchangeable glass cups, collets, and gas lens collet bodies ensures that work never grinds to a halt when a glass cup breaks or a collet wears out.

Unbeatable visibility is the primary functional benefit of this glass cup system. The crystal-clear glass nozzles provide a 360-degree view of the tungsten electrode, the arc cone, and the puddle edges. This optical clarity allows fabricators to maintain precise arc length and torch angle on critical joints where visibility is obstructed by joint geometry. The components are manufactured with high crack resistance and low-temperature impact toughness, allowing the hardware to endure the intense radiant heat generated during prolonged TIG passes on carbon steel and low-alloy steel. Note that the listing indicates the insulating rings may not match CK Torch models.

Weighing 1.24 pounds, this comprehensive kit packs an assortment of gas lens collet bodies, collets, glass nozzles, and replacement O-rings to keep your torch operating smoothly for months of demanding fabrication. It suits professional welders, race car builders, and pipe fitters who rely on clear gas lenses daily. It gives way to the 49-piece kit for casual hobbyists who do not need massive redundancy, and gives way to the WP-17V complete torches if you do not yet own a torch body and lead assembly.

• Extensive 123-piece stubby gas lens consumable assortment for WP-17, WP-18, and WP-26 torches
• Crystal-clear glass cups deliver unobstructed visibility of the arc, tungsten, and weld puddle
• Engineered for pipeline welding and intricate joints on carbon steel and low-alloy steel
• High crack resistance and durable construction built for commercial fabrication environments
