DeWalt 20V Cordless Dust Extractors Compared: Which Setup Fits Your Jobsite?

Best for
Blowing dust from crevices and benches

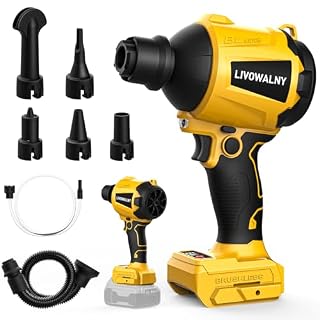

The LIVOWALNY Cordless Dust Blower Compatible is a handheld clearing tool engineered to operate with DeWalt 20V lithium-ion batteries such as the DCB206, DCB205, DCB204, and DCB200. Built around a compact 20-watt brushless motor, this unit generates up to 447 MPH of wind speed with 39 CFM of airflow. Operating at a moderate 66 dB noise level, it provides a portable method for clearing sawdust, drywall shavings, and masonry fragments from workstations when an active vacuum is unnecessary. Unlike standard yard blowers found among dewalt 20v blowers, this unit uses concentrated nozzles designed specifically for tight crevices and precision bench cleanup.

This handheld blower offers three adjustable speed settings to manage airflow velocity and optimize battery endurance, delivering maximum wind forces stepped across 1.1, 1.7, 2.3, and 2.8 Newtons alongside a maximum atmospheric pressure of 29.7 kPa. The package includes five specialized blower nozzles, a thick flexible tube, and a slender flexible tube, enabling users to dislodge stubborn debris from corners, wall joints, and drilled anchor holes before installing concrete fasteners. It can also be adapted to extract air from inflatables when clearing site gear.

This tool suits trim carpenters, remodelers, and mechanics who need an ultra-compact blower to clear surfaces where trailing hoses are cumbersome. Weighing 1.27 kg with dimensions of 5.51 inches long by 9.84 inches wide by 7 inches high, it tucks neatly into a small tool tote. However, because it expels air rather than collecting debris, it gives way to active suction extractors whenever breathable crystalline silica dust or drywall sanding requires filtered containment.

• Brushless motor delivering up to 447 MPH and 39 CFM airflow
• Three selectable speed settings with up to 29.7 kPa atmospheric pressure
• Powered by standard DeWalt 20V lithium-ion battery packs
• Supplied with five blower nozzles, thick flexible tube, and slender flexible tube

Best for
Turnkey overhead concrete anchor installation

Best for
Mobile cordless drilling with SDS hammers

The DEWALT 20V MAX* Dust Extractor, model DWH161B, is a compact cordless extraction unit tailored specifically for mobility on active construction sites. Powered by a 20V MAX brushless motor, this tool provides an OSHA Table 1 compliant dust extractor solution when paired with SDS plus rotary hammers during concrete drilling and chipping operations. It comes equipped with an internal HEPA filter designed to trap respirable dust, giving contractors the respiratory protection needed when anchoring in masonry or concrete ceilings without being tethered to a wall outlet.

Ergonomics play a major role in the design of this dewalt DWH161B 20V MAX dust extractor. It features multiple integrated strap connection points and a durable belt hook, allowing tradespeople to wear the unit over a shoulder or secure it at the hip while working on ladders and lift platforms. The onboard collection container boasts 45 percent more capacity than the older DWH302DH dust box, reducing emptying frequency during repetitive anchor drilling. Unlike a standard dewalt 20v handheld vacuum that lacks certified silica containment, this specialized extractor focuses entirely on fine mineral particulate collection.

Another practical feature is Wireless Tool Control compatibility, which allows tradespeople to pair the extractor with a compatible remote or tool for automatic power activation, though the key fob is sold separately. This unit is the best dewalt dust extractor for concrete drilling when working with uncoupled rotary hammers, but it yields to larger 8-gallon canister units when continuous surface grinding or high-volume wood collection is required.

• OSHA Table 1 compliant mobile dust collection with included HEPA filter
• Brushless 20V MAX motor optimized for SDS plus drilling and chipping
• Collection canister provides 45 percent more capacity than DWH302DH box
• Multiple strap connection points, belt hook, and Wireless Tool Control capability

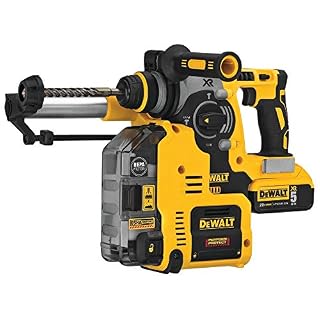

The DEWALT 20V MAX XR Rotary Hammer, kit model DCH273P2DHO, delivers a comprehensive, self-contained concrete drilling setup with an integrated extraction system. The tool centers on an L-shaped 1-inch SDS Plus hammer driven by a brushless motor and a durable mechanism delivering 2.1 Joules of impact energy. By directly attaching the included DWH303DH on-board extractor, this kit functions as a self-contained cordless HEPA dust extractor for SDS plus drilling that captures concrete dust the instant the bit contacts the masonry substrate.

Dust collection efficiency is reinforced by an independent built-in motor inside the extractor module that maintains steady suction regardless of drill load. The unit incorporates an intelligent two-second power-off delay, keeping the vacuum running momentarily after the trigger is released to clear residual particulate from the hole and nozzle. The assembly includes a replaceable dust nozzle and a durable, clear high-capacity dust box that allows quick visual checks of debris levels. This dewalt DCH273P2DHO rotary hammer with dust extraction satisfies OSHA Table 1 compliance right out of the box.

Beyond dust management, the hammer incorporates the SHOCKS Active Vibration Control system to reduce operator fatigue during repetitive drilling. Delivering rotational speeds up to 1050 RPM and 1.53 ft-lb of torque, it is optimized for rod hanging, structural connections, column anchorage, and seismic attachments. While ideal for drilling holes up to 1 inch, this dedicated setup gives way to independent universal extractors when performing surface grinding or cleanout with separate power tools.

• All-in-one SDS plus rotary hammer pairing an on-board dust extraction module
• Integrated extractor motor with two-second power-off delay for clear holes
• Produces 2.1 Joules of impact energy with SHOCKS Active Vibration Control
• Includes 5.0 Ah lithium-ion batteries and clear high-capacity dust container

Best for
Heavy concrete grinding and shop cleanup

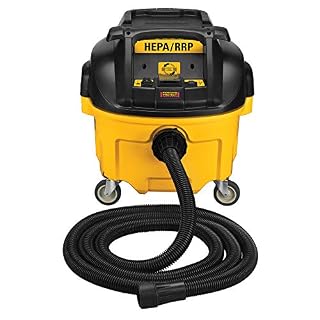

The DEWALT DWV010 HEPA Dust Extractor is an 8-gallon, corded commercial vacuum engineered for relentless dust capture during heavy concrete and woodworking tasks. Powered by a robust 15-amp electric motor, this unit delivers up to 150 CFM of airflow with a maximum suction rating of 155 feet of lift. It features an automatic filter cleaning cycle that pulses reverse air through the filters every 30 seconds, preventing fine silica and drywall particulate from clogging the intake and maintaining continuous suction without stopping work.

Jobsite versatility is supported by Power Tool Actuation, which lets users plug a corded power tool directly into the vacuum so the suction activates and shuts down automatically with the tool trigger. The extractor includes a 15-foot anti-static hose measuring 1.25 inches in diameter, preventing static shock buildup when extracting fine masonry dust. When fitted with optional DWV9330 filters, this dewalt DWV010 HEPA dust extractor 8 gallon meets the stringent EPA Lead Related Renovations, Repair and Painting (RRP) rule for HEPA vacuums. Pairing this high-volume canister with a dedicated dewalt drywall sander with vacuum assembly provides an exceptionally clean sanding environment.

Weighing 21 pounds, the canister rides on heavy-duty wheels and front casters for smooth transit across rough concrete floors. Operating at an 80 dB noise level, it is suited for indoor commercial restoration, concrete surface planing, and multi-tool shop extraction. It gives way to compact 20V cordless options when operators work on ladders or in remote outdoor spaces without accessible power outlets.

• Automatic filter clean mechanism pulses every 30 seconds for non-stop airflow
• 15-amp motor produces 150 CFM airflow with 155 feet of suction lift
• Meets EPA Lead RRP rule standards when equipped with DWV9330 filters
• Fifteen-foot anti-static hose with heavy-duty mobile wheels and casters

Best for
Connecting extractors to tool shrouds securely

The DEWALT Universal Tool Connector, catalog number DWV9000, is a critical piece among dewalt dust extractor accessories that solves the problem of loose, slipping vacuum hoses. Designed to establish a secure link between standard 1-1/4-inch vacuum hoses and various DeWalt tool dust ports or grinding shrouds, this adapter creates an airtight seal that maximizes suction efficiency across concrete, drywall, and woodworking applications.

A standout attribute of this dewalt DWV9000 universal tool connector is its positive lock mechanism. Once pushed onto the tool port, a twisting lock ring physically clamps the adapter into place, ensuring the hose cannot pull loose during active overhead drilling or wide sweeping cuts. Furthermore, the connector features integrated swivel capability, allowing the hose to rotate 360 degrees freely. This rotation stops hose kinks, reduces wrist fatigue, and prevents the hose from binding against workbenches or framing studs.

Backed by a 3-year limited warranty, the DWV9000 is an essential accessory for any tradesperson building out a comprehensive dewalt 20v max dust extraction system. It ensures that handheld extractors, shop vacuums, and shroud systems interlock seamlessly without relying on makeshift duct tape. However, because it is strictly an interface adapter, it must be paired with an active vacuum and compatible hose to collect dust.

• Provides secure connection between 1-1/4-inch vacuum hoses and tool shrouds
• Positive locking collar prevents accidental hose disconnection during work
• 360-degree swivel capability minimizes hose kinking and user fatigue
• Built for dust collection in concrete, drywall, and woodworking tasks
