TEKTON Swivel Socket Sets: Which One Fits Your Toolbox?

The TEKTON 3 8 Inch Drive Universal joint impact socket set under model number SID97302 is built for demanding automotive and industrial service. This 19-piece kit provides uninterrupted shallow metric coverage starting at 8 mm and running all the way through 24 mm. Each socket is engineered specifically for high-torque powered tools, pairing a socket base crafted from 4140 chromium-molybdenum steel with a ball-and-socket piece forged from 8660 nickel-chromium-molybdenum steel. Both components receive a protective manganese phosphate coating to resist rust and are pre-lubricated with SuperLube synthetic grease for smooth operation straight from the factory.

Instead of traditional pinned designs that can shear under rotational stress, the tekton SID97302 features a 6-sided pinless ball-and-socket joint that rotates smoothly and continuously at up to a 30-degree working angle. The smooth internal walls and detent pin hole ensure dependable retention on impact anvils whether your tool uses a friction ring or a detent pin. Markings are permanently visible thanks to both high-visibility laser etching and stamped impressions. A rugged case made from high-density polyethylene protects the tools against common fuels, lubricants, and solvents.

This comprehensive set suits professional mechanics and advanced DIYers who regularly tackle suspension, drivetrain, and engine work with powered impact wrenches. It gives way to the smaller SID97102 if you only service hardware up to 19 mm and prefer rail storage, or to chrome hand-tool sets like the SHD91301 if you require imperial fractional sizing or greater angular clearance than 30 degrees.

• Unbroken 19-piece metric shallow lineup from 8 mm through 24 mm
• Heavy-duty 6-sided pinless joint operating smoothly up to a 30-degree angle
• Dual size markings featuring both laser etching and permanent roll stamping
• Chemical-resistant high-density polyethylene storage case

When working inside restricted engine compartments, under dashboards, or on motorcycle assemblies, the TEKTON 1 4 Inch Drive Universal joint set under model number SHD90110 provides unmatched access. This 9-piece collection delivers shallow 6-point metric coverage from 6 mm through 14 mm. By integrating the universal joint directly into the shallow socket body, TEKTON drastically cuts down overall tool height compared to stacking an independent universal joint adapter underneath a standard socket. This minimal height lets you slip your ratchet into spaces where conventional sockets cannot fit.

The tekton SHD90110 utilizes a compact 4-pin joint design engineered for hand-drive tools, enabling a wide working angle of up to 55 degrees of continuous rotation. The shallow 6-point openings feature radiused corners that drive the flat sides of hex fasteners rather than the delicate corners, substantially decreasing the risk of fastener rounding under heavy manual torque. Detent grooves and beveled drive ends ensure a firm, positive lock onto your ratchet or extension bar. Users organizing a wider modular setup alongside a tekton 1/4 socket set will appreciate the included twist-to-lock rail system.

This set suits technicians, electronics repairers, and automotive mechanics working on small-displacement metric hardware. It gives way to the 16-piece SHD90217 if your everyday workload demands fractional inch sizes alongside metric hardware, or to 3/8-inch drive sets when servicing fasteners larger than 14 mm.

• Continuous 9-piece metric range covering 6 mm to 14 mm without skips
• Compact 4-pin joint architecture offering up to a 55-degree operating angle
• Radiused 6-point socket corners to prevent fastener head damage
• Sturdy socket rail with secure twist-to-lock socket clips

The TEKTON 3 8 Inch Drive Universal joint socket set SHD91301 is TEKTON’s flagship hand-drive universal solution for mixed-fleet garages. This 17-piece assortment combines 7 shallow inch sockets (3/8, 7/16, 1/2, 9/16, 5/8, 11/16, and 3/4 inch) with 10 shallow metric sockets (10, 11, 12, 13, 14, 15, 16, 17, 18, and 19 mm). Having both measurement standards in a single dedicated case makes it easy to switch between domestic equipment and metric imports without digging through separate tool trays.

Designed for hand ratchets, breaker bars, and torque wrenches, the tekton SHD91301 incorporates a smooth 4-pin universal joint that flexes continuously up to 55 degrees. This broad range of movement provides nearly double the angular deflection of impact swivel designs. Each socket is cold-formed from metal, finished in bright chrome, and stamped with extra-deep size markings that will not rub off from repeated wiping or solvent contact. While a standard tekton 12 point socket set is great for rapid indexing on standard fasteners, the 6-point design here provides maximum surface contact to prevent slipping on stubborn, awkwardly angled nuts and bolts.

Mechanics maintaining general automotive systems, agricultural equipment, and machinery will find this dual-measurement collection indispensable. It gives way to the impact-rated SID97302 or SID97102 when work calls for powered pneumatic or cordless impact drivers, which would overload the 4-pin hand-drive joint.

• Dual-standard 17-piece coverage spanning 3/8 to 3/4 inch and 10 to 19 mm
• Wide 55-degree joint angle for severe off-axis fastener access
• Twist-to-lock organizer rails and tray housed in a fitted carrying case
• Deep roll-stamped size markings that never fade or rub off

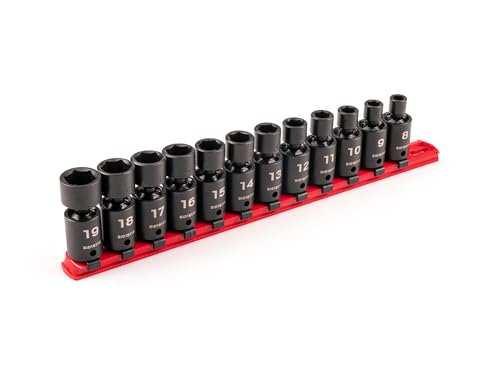

If you need the strength of impact-grade construction but want a compact footprint for your service cart, the TEKTON 3 8 Inch Drive Universal joint impact socket set under part number SID97102 provides the essential hardware. This 12-piece set delivers a focused range of metric sizes from 8 mm through 19 mm, addressing the vast majority of fasteners encountered on passenger car suspensions, brake calipers, and exhaust manifolds. Rather than a full blow-molded case, this kit comes organized on an efficient twist-to-lock socket rail that takes up minimal space inside a roll cab drawer.

Like its larger sibling, the tekton SID97102 utilizes a heavy-duty 6-sided pinless joint. Constructed with a 4140 chromium-molybdenum steel base and an 8660 nickel-chromium-molybdenum ball-and-socket piece, it delivers exceptional resistance to rotational shearing. The pinless joint articulates smoothly up to 30 degrees, providing stable torque transfer without the binding or slop commonly seen in pinned swivels. Sockets arrive pre-lubricated with SuperLube synthetic grease and feature both a laser marking and a permanent stamped size mark for instant readability.

This tekton 3/8 drive universal joint impact socket set is ideal for mobile mechanics and automotive techs who rely heavily on 3/8-inch cordless impact wrenches for routine metric service. It gives way to the 19-piece SID97302 if you require sizes from 20 mm to 24 mm, or to hand-drive sets when manual ratcheting with extreme 55-degree angular deflection is necessary.

• Targeted 12-piece metric impact selection spanning 8 mm to 19 mm
• Durable 6-sided pinless ball joint rotating smoothly up to 30 degrees
• Alloy construction pairing 4140 Cr-Mo bases with 8660 Ni-Cr-Mo ball pieces
• Compact storage rail featuring customizable twist-to-lock clips

For technicians working exclusively on legacy machinery, aircraft interiors, or domestic appliances, the TEKTON 1 4 Inch Drive Universal joint socket set SHD90109 delivers dedicated inch coverage. This 7-piece set includes fractional sizes 1/4, 5/16, 11/32, 3/8, 7/16, 1/2, and 9/16 inch mounted on a 6.4-inch rail. By focusing strictly on SAE dimensions, it avoids the clutter of unneeded metric hardware while keeping your 1/4-inch drive hand setup lean and purposeful.

The tekton SHD90109 features the same proven 4-pin universal joint found across TEKTON’s chrome hand-drive lineup, affording up to 55 degrees of smooth continuous angle. When pairing this set with specialty drivers such as a tekton allen socket set, mechanics can access obscured hex and fastener heads inside tight chassis channels or under small engine cowlings. The shallow 6-point geometry firmly grasps hex heads with radiused corners, directing torque away from fastener vertices.

This set suits woodworkers, aircraft mechanics, and equipment restorers whose work centers on American fractional fasteners. It yields to the dual-standard SHD90217 if you need metric coverage as well, or to 3/8-inch drive sets when applying higher manual torque to fasteners larger than 9/16 inch.

• Specialized 7-piece SAE lineup from 1/4 inch through 9/16 inch
• Generous 55-degree continuous swivel movement for tight clearances
• Space-efficient 6.4-inch socket rail with twist-to-lock retaining clips
• Polished metal chrome finish with permanent stamped size markings

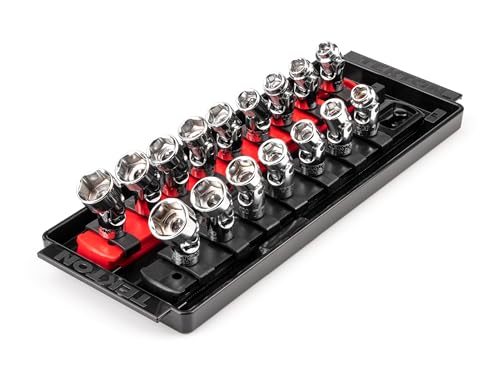

The TEKTON 1 4 Inch Drive Universal joint socket set SHD90217 provides a total low-profile solution across both standard measurement systems. This 16-piece kit includes 7 fractional inch sockets (1/4, 5/16, 11/32, 3/8, 7/16, 1/2, and 9/16 inch) and 9 metric sockets (6, 7, 8, 9, 10, 11, 12, 13, and 14 mm). Everything is neatly organized on two 8-inch color-coded socket rails—red for SAE and black for metric—secured together on an 8-inch 2-rail tray.

Built for hand-drive precision, each socket in the tekton SHD90217 utilizes a compact 4-pin joint offering up to 55 degrees of articulation. The one-piece integrated u-joint design minimizes overall socket height, enabling you to reach tight bellhousing bolts, intake manifold fasteners, and electrical bracket hardware. Just as a specialized tekton torx socket set helps you maneuver around proprietary fasteners, this shallow 6-point u-joint set grips standard hex hardware with radiused corners that eliminate rounding.

This tekton 1/4 inch drive universal joint socket set is the top recommendation for technicians who want complete 1/4-inch drive accessibility for any small fastener that enters the bay. It gives way to 3/8-inch drive alternatives once fastener sizes exceed 14 mm or 9/16 inch, or whenever an impact wrench is required for fastener removal.

• Broad 16-piece dual-standard set with 7 SAE and 9 metric sizes
• Two 8-inch color-coded rails on a dual-rail storage tray
• Smooth 55-degree working angle from an ultra-compact 4-pin joint
• Precision 6-point shallow broaching with corner-relief geometry
