Reolink 5MP PoE Security Cameras: Which Model or Kit Should You Install?

The REOLINK PoE Security Camera RLC-520A comes as a two-pack of rugged dome units engineered for indoor or outdoor installation. Encased in a sturdy aluminum housing with waterproof protection, this 5MP Super HD camera records at a resolution of 2560×1920 at 25 frames per second. The dome form factor makes it an ideal fit for ceiling mounts along porch eaves, corridors, or entry hallways where a traditional bullet camera might look intrusive or suffer physical interference. It operates through an IEEE 802.3af PoE switch, an injector, a Reolink network video recorder, or an optional 12V DC power adapter.

Each camera includes onboard smart algorithms capable of distinguishing humans and vehicles from benign background motion, with animal detection supported once updated to the latest firmware. A built-in microphone records ambient audio to provide essential context alongside video recordings, establishing this model as an effective reolink poe camera with microphone. Users seeking standalone convenience can store continuous, motion-triggered, or scheduled footage directly on a microSD card up to 512GB, upload it to an off-site FTP server, or route it into a dedicated NVR.

This two-pack serves property owners who already possess a PoE switch or intend to build a tailored surveillance network piece by piece. It provides independent recording capability without requiring a central hub. However, if your property demands continuous multi-week recording across five or more distinct viewing angles, stepping up to an integrated reolink poe camera system with a dedicated NVR hard drive will prove much simpler to manage than multiple separate memory cards.

• 2560×1920 Super HD video at 25 frames per second with time-lapse recording modes
• Onboard person, vehicle, and animal detection algorithms to reduce false alarms
• Built-in microphone for synchronized ambient audio monitoring
• Flexible storage accommodating microSD cards up to 512GB, FTP servers, and Reolink NVRs

Best for
Immediate six-zone perimeter surveillance

Best for
Midsize homes wanting room to expand

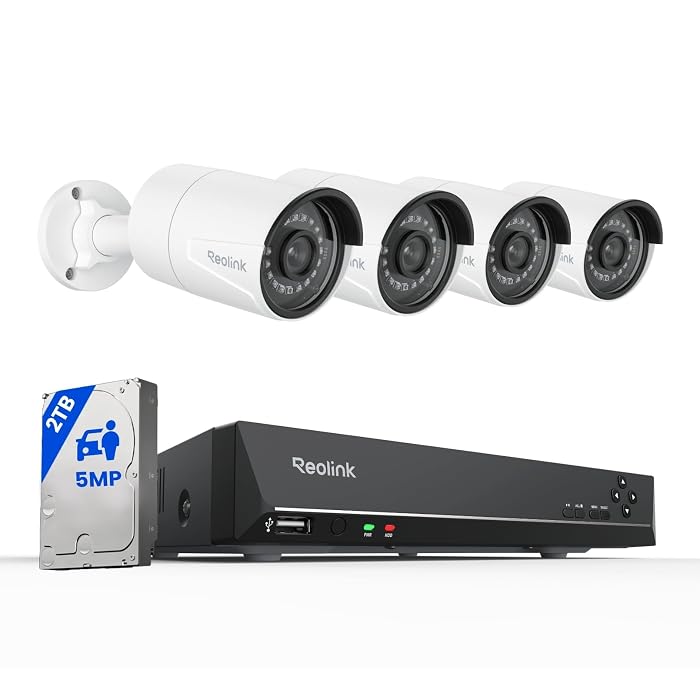

The REOLINK 8CH 5MP PoE Security Camera system, known by model RLK8-410B4-5MP, pairs an eight-channel network video recorder with four wired 5MP bullet cameras. The included NVR comes equipped with a pre-installed 2TB hard disk drive, giving you roughly ten days of uninterrupted recording without overwriting existing files. Should your retention requirements expand, the recorder features an external e-SATA port that supports an additional drive up to 8TB. Because the system runs on a closed, wired PoE connection, digital video signals travel without the bandwidth degradation or interference that can plague wireless networks.

Each 5MP camera features 18 infrared LEDs that project night vision reach up to 100 feet in complete darkness. The cameras incorporate intelligent motion detection to recognize people, vehicles, and animals, minimizing unnecessary push alerts caused by windblown foliage or wandering insects. Integrated microphones across the camera housings pick up ambient sound, adding an audible dimension to daytime and nighttime event clips.

This kit is tailored for typical single-family homes that need immediate front, back, and side yard surveillance while keeping four open ports ready for future expansion. Setting up the plug-and-play wiring requires running single network lines from each camera directly to the NVR. If you already know that your property demands more than eight total cameras, jumping straight to a 16-channel baseline avoids having to replace your central recording hardware later.

• Eight-channel PoE NVR equipped with a pre-installed 2TB surveillance hard drive
• Expandable storage capacity supporting an extra external 8TB drive via e-SATA
• Four 5MP cameras with 18 infrared LEDs delivering up to 100 feet of night vision
• Built-in microphones capturing ambient audio on all included camera feeds

Best for
Large properties requiring extensive coverage

For extensive layouts, large estates, or multi-building operations, the REOLINK 16CH 5MP Home Security Camera kit, designated as RLK16-410B8-5MP, offers expanded scale. This commercial-grade bundle pairs a sixteen-channel PoE NVR with eight 5MP cameras, providing instant coverage for extensive perimeters while leaving eight network ports free for additional cameras. The NVR hardware supports substantial onboard storage, with listings identifying a 4TB storage capacity and support for an additional 8TB external drive via SATA, ensuring multi-camera 24/7 video streams remain archived for long periods.

The cameras capture video at 2560×1920 resolution at 25 frames per second, pairing high-definition detail with an 18-LED infrared array for night vision reaching 100 feet. Customized motion detection lets users adjust sensitivity thresholds, boundary zones, and alert schedules for people, vehicles, and pets. Audio recording is handled by integrated microphones across all outdoor units, while remote viewing is supported through the Reolink app and desktop clients across iOS, Android, Windows, and Mac platforms.

This system suits buyers who must manage wide perimeters, outbuildings, driveways, and multiple building entrances from a single dashboard. Operating an expansive reolink security camera system comparison shows that moving to a 16-channel architecture offers the lowest cost per camera port when securing substantial square footage. However, for compact urban homes or small commercial retail floors requiring six cameras or fewer, the physical bulk and wiring overhead of a 16-channel hub exceeds everyday needs.

• Sixteen-channel NVR with eight included 5MP wired PoE cameras
• High-capacity storage framework featuring 4TB capacity and external SATA expansion up to 8TB
• Customizable smart alerts distinguishing humans, vehicles, and pets with fine-tuned detection areas
• Clear 2560×1920 video at 25 frames per second with 100-foot infrared night vision

The REOLINK 8CH 5MP Super HD Home package, identified as RLK8-410B6-5MP, bridges the gap between four-camera kits and larger systems by supplying six B500 bullet cameras alongside an eight-channel RLN8-410 NVR. The system includes a pre-installed 2TB hard drive and an IEEE 802.3af/at PoE power supply operating on a DC 52V adapter. Each camera is built around a 1/2.7-inch 5MP CMOS sensor paired with a 4.0mm fixed lens at F=2.0, outputting 2560×1920 video at 25 frames per second using efficient H.264 compression.

All six cameras feature an 18-piece infrared LED configuration that delivers clear black-and-white night vision up to 100 feet. Smart detection algorithms analyze incoming video feeds directly to classify people, animals, and vehicles, filtering out shifting tree branches or rain streaks before sending notifications. Like Reolink’s other wired cameras, each unit houses an integrated microphone to monitor ambient yard noise and conversational audio near points of entry.

This bundle is an ideal option for homeowners who need comprehensive coverage right away, such as monitoring two side paths, a front porch, a back deck, a garage door, and a detached shed, without having to buy separate add-on units. It is important to note that the B500 cameras in this kit are engineered to function exclusively with a Reolink NVR and do not support standalone operation or smart home integrations. If you require independent cameras that work directly with third-party software or local SD cards, standalone options like the RLC-520A are a better fit.

• Complete eight-channel kit supplied directly with six 5MP B500 bullet cameras
• Optical hardware featuring a 1/2.7-inch CMOS sensor and 4.0mm fixed F=2.0 lens
• Pre-installed 2TB hard drive providing continuous 24/7 video recording across all channels
• Smart classification for vehicles, people, and animals alongside 100-foot infrared night vision

Best for
Driveways requiring sharp 4K detail

When target locations demand extra clarity for reading license plates or recognizing distant facial details, the REOLINK RLC-810A PoE Security Camera steps beyond standard 5MP limits into 4K Ultra HD. Generating an 8MP resolution at 25 frames per second, this bullet camera delivers 1.6 times the visual detail of 5MP sensors and four times that of traditional 1080p systems. Built with an IP67-rated waterproof exterior, the RLC-810A is purpose-built to withstand direct exposure to rain, snow, and extreme outdoor weather on exterior perimeters, driveways, and commercial alleys.

The unit features smart on-device processing to recognize human and vehicle silhouettes, avoiding alarms caused by blowing leaves or wandering wildlife. Alerts arrive as real-time push notifications or automated emails through the Reolink app. For video archiving, the RLC-810A supports local recording directly to an onboard microSD card, a central NVR, or a remote server over FTP, and it includes built-in time-lapse features to compress hours of outdoor activity into brief clips.

Shoppers weighing a reolink 5mp vs 4k poe camera selection will find the RLC-810A compelling for critical vantage points where fine detail is paramount. A 5MP camera covers general yard activity well, but the 8MP sensor on this unit gives you the pixel density needed to crop into an image without severe blur. Because this is an individual add-on camera, you will need an existing PoE switch, injector, or compatible NVR to power it and manage long-term archiving.

• 4K 8MP Ultra HD resolution at 25 frames per second for heightened optical clarity
• IP67-rated weatherproof bullet housing built for demanding outdoor environments
• Advanced AI detection tailored specifically to identify people and vehicles
• Local recording options including internal microSD storage and network backup

The REOLINK PoE Security Camera RLC-820A provides the same 4K Ultra HD image clarity as its bullet sibling, packaged in an aluminum dome form factor. Sold as a two-pack, these wired cameras record at 3840×2160 resolution, capturing fine surface textures, clothing patterns, and vehicle details with crisp precision. The dome casing offers a clean, low-profile appearance when mounted under exterior roof soffits, covered entryways, or commercial ceilings.

Equipped with intelligent human, vehicle, and animal detection, the RLC-820A processes imagery on the camera itself to ensure users receive accurate notifications about meaningful activity. The integrated microphone records ambient audio to accompany high-resolution video streams. Video can be recorded continuously 24/7, on a scheduled timer, or upon motion detection, saving files to an internal microSD card up to 512GB, a Reolink NVR, or an off-site FTP destination.

This two-pack is ideal for property owners upgrading key entry doors, covered patios, and front facades where dome cameras offer cleaner aesthetic integration than protruding bullet units. If you are comparing options against a standalone reolink 8mp poe camera, the RLC-820A delivers premium 4K resolution alongside dome durability. However, if your setup relies on an older 5MP-only NVR with limited decoding bandwidth, sticking with native 5MP hardware like the RLC-520A prevents resolution mismatches.

• Two-pack of 4K Ultra HD cameras delivering 1.6 times the resolution of 5MP hardware
• Sturdy aluminum dome housing suited for subtle ceiling and soffit installation
• Built-in microphone for synchronized audio monitoring alongside video capture
• Flexible recording paths supporting microSD cards up to 512GB, FTP servers, and NVRs
